Tricone Bit

Tricone Bit

tricone bit

Tricone Bit for Oil Well

Tricone Bit for Water Well

Tricone Bit for Water Well

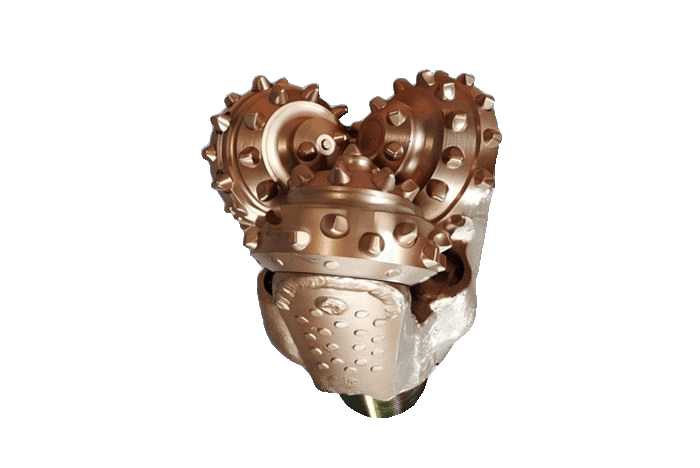

water well tricone bit

Tricone bit for water well is suitable for engineering fields such as water wells, medium and low temperature geothermal wells, coalbed methane wells, and freezing hole drilling.

The structure and classification of the product are almost same as those of tricone drill bit in oil well operation.

Ziteng Technology can provide full-size and full-series tricone bit for water well drilling. The products have the following characteristics:

Unique bearing design makes the structure more stable, superior in performance and strong in adaptability.

Adopt high temperature resistant and wear resistant rubber sealing structure to prolong service life.

Precisely designed cutting structure is suitable for formations of different hardness and lithology.

Excellent oil storage system balances the pressure difference between the inside and outside of the bearing, extending the life and stability of drill bit.

Diverse bit strengthening features can solve different types of problems in dilling.

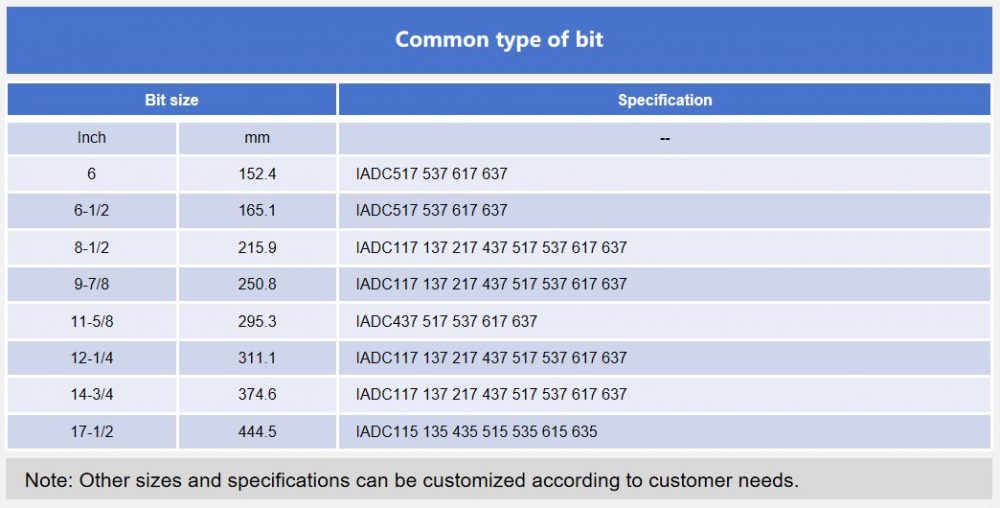

It has the characteristics of long service life, strong adaptability, good diameter retention, and high efficiency under conditions of medium to low weight on bit and high rotational speed. The drill bit size ranges from 6 to 17 1/2 inches, and the IADC code ranges from 116 to 637.

Please inform us of the size of the hole, the geological conditions, and the performance requirements for the product. Our technical staff can design a complete solution for you.
